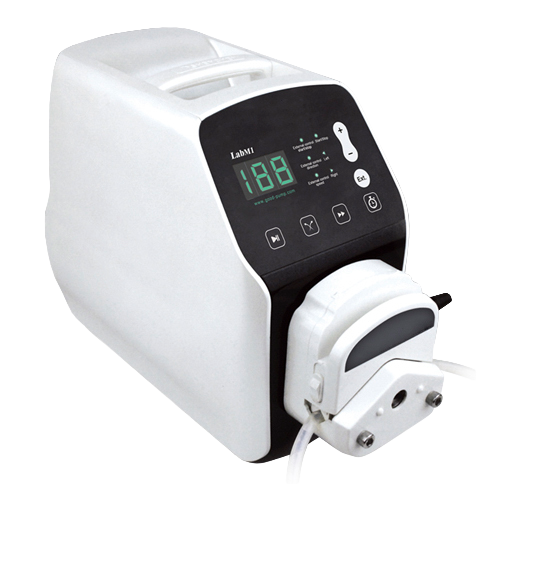

Sipper
Enables fast and accurate measurements by automatically delivering samples to the flow cell. The integrated peristaltic pump provides flow rates of up to 570 mL/min with precise speed control.
Auto Calibration
Click the [Calibration] button in the Sipper Setup menu to automatically calibrate the aspiration volume.
Parameter
Description
Speed
Sample aspiration speed
Calibration
Calibration factor relating pump rotation to sample volume
Sample
Volume aspirated each time the [Aspirate] button is pressed
Feed
Additional volume used to deliver the sample into the flow cell
Key Features
Manual Mode
Manually aspirates the sample before measurement using either the Sipper control button or the spectrophotometer software
Aspirate before Measure
Automatically aspirates the sample immediately before measurement when the [Measure] button is pressed
Aspirate after Measure
Automatically aspirates the next sample after measurement to improve workflow efficiency
Calibration
Used to configure Sipper calibration parameters. Changes should only be made by authorized users
Specifications
Flow rate range
0.035~570
Speed range
0.5~150 rpm
Speed resolution
0.1 rpm (0~100 rpm) / 1 rpm (100~600 rpm)
Maximum pressure
0.17 (Continuous) / 0.27 (Intermittent)

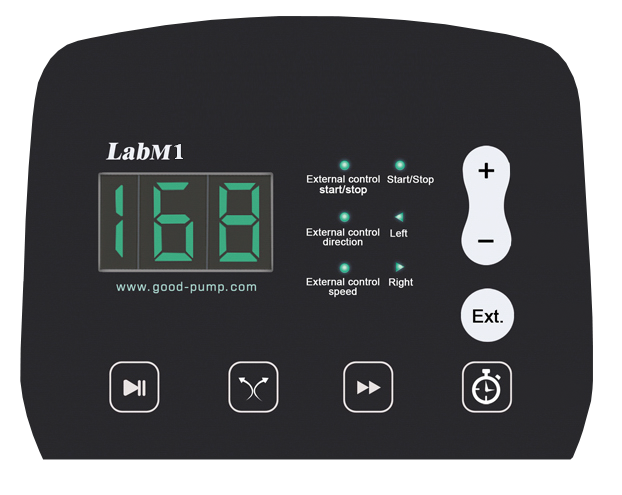

Display
3 digital LED
Control method
Mechanical keypad
Communication interface
RS232
Power supply
AC 220V, 50/60Hz
AC 220V, 50/60Hz
4.40 kg
Power consumption
< 50W
Condition temperature
0~40 ℃
Control method
Mechanical keypad
(*) Compatible Products
