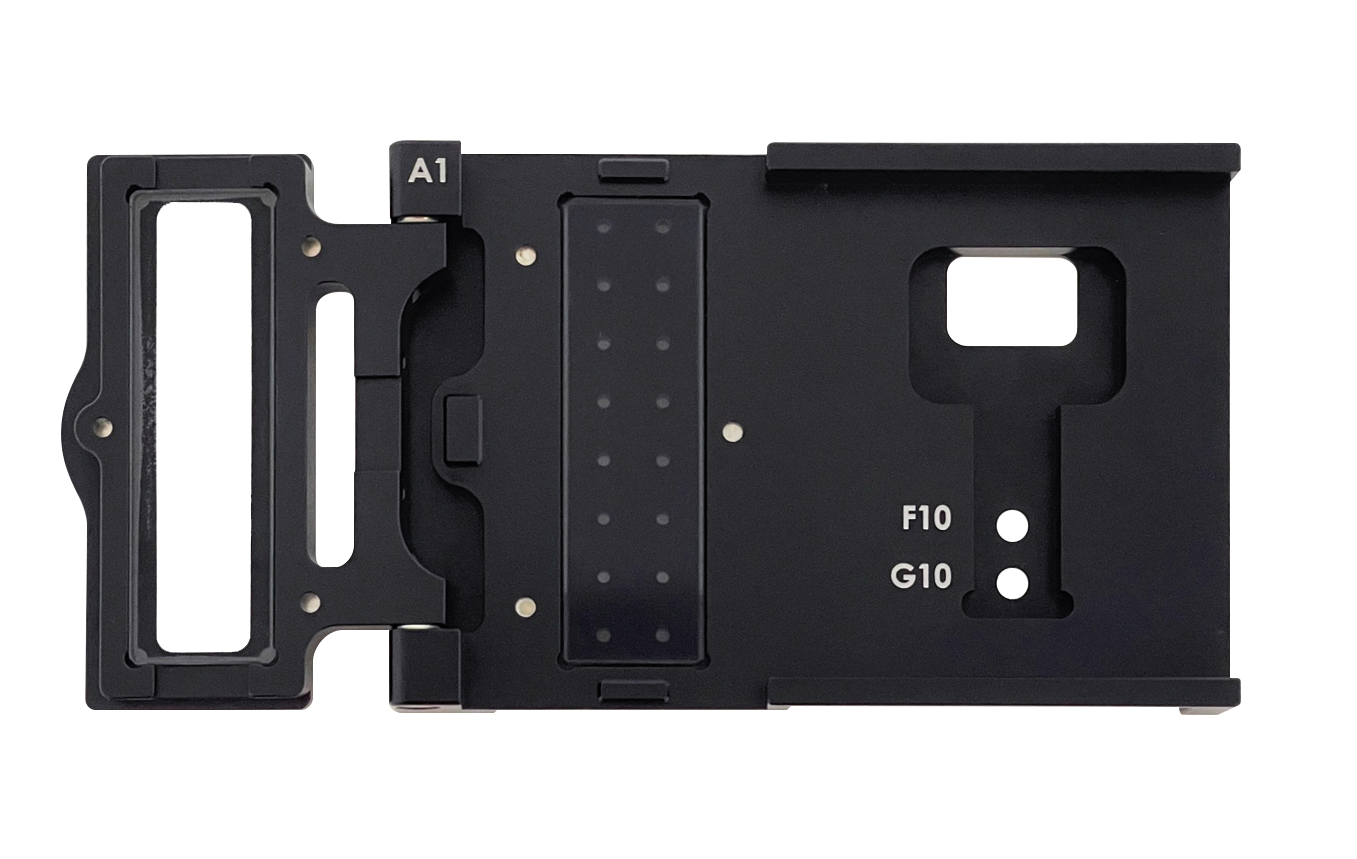

Microvolume Plate Cell Holder

K LAB’s MVP is a dedicated microvolume plate accessory for the MRX A2000 microplate reader, enabling accurate quantification of nucleic acids and proteins from sample volumes as low as 2 μL.

The MVP combines a fixed 0.5 mm pathlength microspot design with plate-specific alignment and pathlength correction to provide highly reproducible results while eliminating the need for sample dilution.

Key Features

Microvolume Sample Quantification

  • Minimum sample volume: 2 μL
  • Direct quantification of nucleic acids and proteins without dilution
  • Minimizes sample loss and improves measurement repeatability

Precision Pathlength Design

  • Fixed pathlength: 0.5 mm
  • Automatically establishes a consistent pathlength when the lid is closed
  • Ensures measurement accuracy through plate-specific pathlength correction

Dedicated Software Integration

  • Dedicated MVP application integrated into MRX View software
  • Nucleic acid quantification mode
  • Protein quantification mode
  • Automatic data analysis without manual calculations

High-Speed Multi-Sample Measurement

  • Available in multiple microspot configurations
  • MVP-16 : 16 spots
  • MVP-48 : 48 spots
  • Enables high-throughput processing using a multichannel pipette

Application Fields

Molecular Biology / Life Science

  • DNA / RNA quantification
  • PCR, qPCR, NGS sample QC
  • Nucleic acid analysis with limited sample volume

Protein Analysis

  • Protein concentration measurement
  • Concentration verification at each purification stage
  • Sample conservation when using expensive reagents

Research & Analysis Laboratories

  • R&D environments requiring repeated measurements
  • High-speed, multi-sample quantification workflows
  • Environments requiring microplate-based workflow maintenance

Specifications

Measurement Sample Volume

Min. 2 µL

Pathlength

0.5 mm

Microspot Configuration

16/48

Calibration Method

Alignment + Individual pathlength correction

Validation

SC-1 standard-based %Error verification

Software

MRX View (MVP dedicated mode)

(*) Compatible Products

MRX Series (Microplate Reader)
